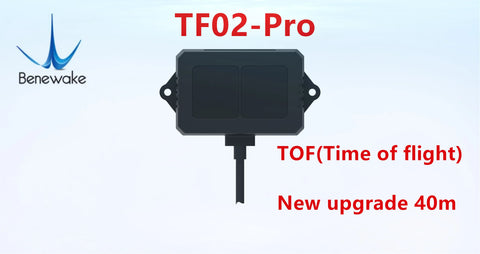

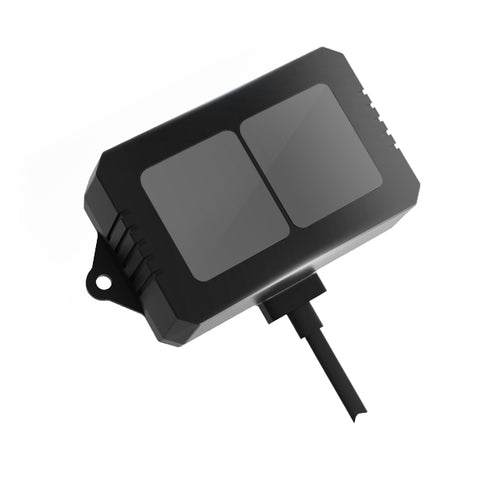

Benewake tf02 pro lidar:

TF02-Pro is a high-performance, cost-effective mid-range ToF LiDAR sensor with a maximum range of 40 meters. Built upon the foundation of the TF02, the Pro version features a redesigned optical system and optimized circuitry for enhanced accuracy, reduced blind zones (as low as 10 cm), and lower power consumption.

Encased in a robust IP65-rated housing, TF02-Pro withstands harsh environments, delivering stable distance data even under 100KLux strong ambient light. It supports up to 1000Hz refresh rate, allowing for responsive real-time applications.

The integration of advanced fusion algorithms ensures high reliability across complex environments, making TF02-Pro perfect for applications like drone altitude hold, smart parking, traffic monitoring, and agricultural automation.

The distance sensor capability of TF02-Pro provides accurate and reliable measurements for industrial automation, robotics, and smart sensing applications requiring fast and stable object detection.

📌 Key Specifications:

Measuring Range: 0.1 – 40 m
Accuracy: ±6 cm
Refresh Rate: 1 – 1000 Hz
Ambient Light Resistance: 100 KLux
Power Supply: Wide voltage input with reverse protection
Housing Material: ABS+PC, IP65 Waterproof
Interfaces: UART, I²C, I/O
Weight: ~52 g
Dimensions: Compact and easy to integrate

✅ Key Features:

40m long-distance measurement with high accuracy
Compact and durable body with high-strength IP65 housing
100KLux sunlight resistance, ideal for outdoor applications
Advanced fusion algorithm for environmental adaptability
Multiple interface options: UART, I²C, I/O
Wide voltage range with built-in reverse protection

📍 Typical Applications:

UAV height control
Smart traffic systems
Parking lot automation
Precision agriculture
Robotics and outdoor sensing

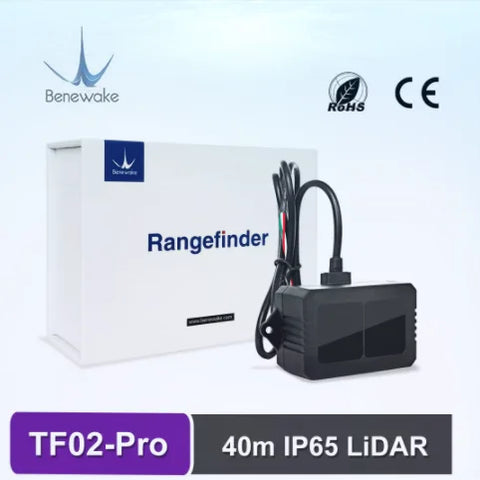

Benewake TF02-Pro 40m LiDAR Sensor – IP65, Outdoor ToF Rangefinder
