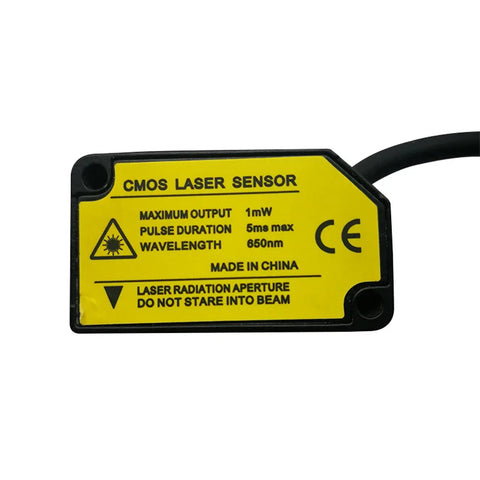

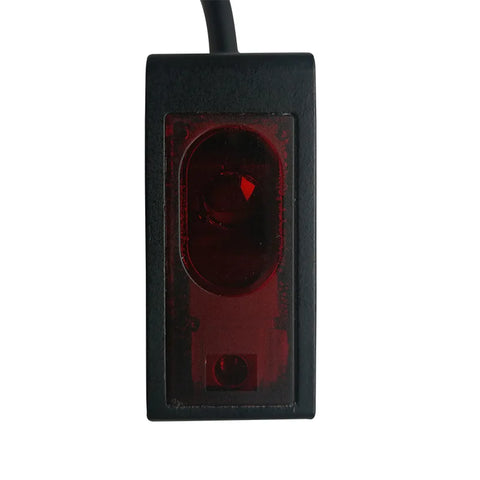

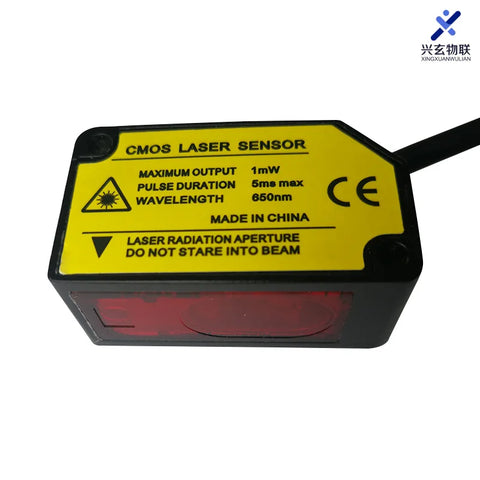

Analog Laser Distance Sensor Model Description

. Range 30mm ± 5mm (center 30mm) PNP/NPN switching value

Model 2. Range 30mm ± 5mm (center 30mm) PNP/NPN switching value/4-20mA analog value

Model 3. Range 30mm ± 5mm (center 30mm) PNP/NPN switching value/0-5V analog value

Characteristics of the high-precision laser displacement sensor XW-DT22 series:

1. The XW-DT22 series of laser displacement sensors are based on the laser triangulation method and are suitable for high-precision displacement measurement,

Widely used in precision instruments/circuit boards/product micro deformation/sheet thickness/material thickness measurement and other scenarios

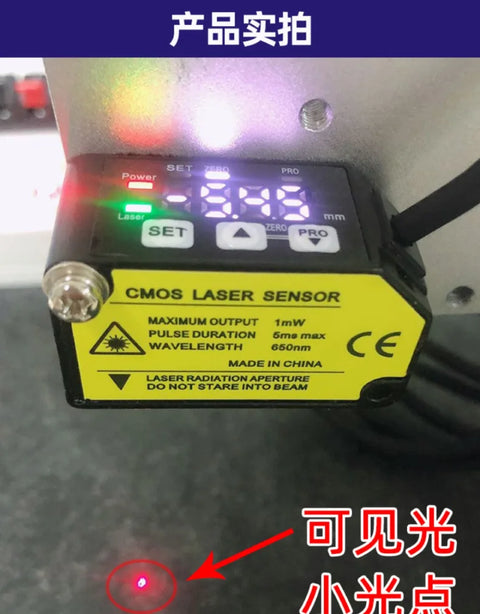

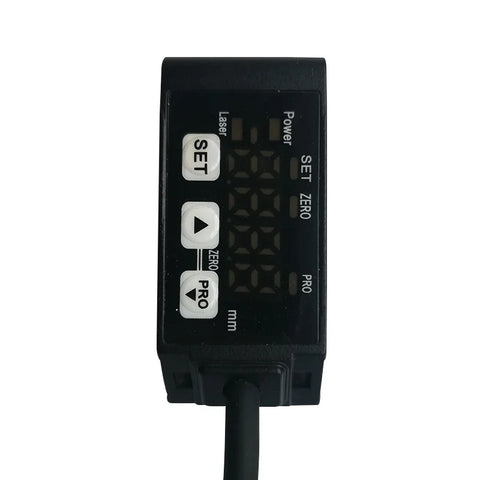

2. Support intelligent display and external display screen, directly display displacement value data values, and can also measure product sheet thickness

3. The measurement distance can be selected, supporting 25-35mm (center 30mm, range 10mm), 65-135mm (center 100mm, range 70mm),

Different measurement distances such as 200~600mm (center 400mm, range 400mm)

4. Compact size, easy installation, fast response, high sensing accuracy, dynamic target sensing, measuring frequency up to 500Hz, capable of measuring fast moving targets

5. Easy to operate, directly connected to a 12~24V DC voltage, which can achieve measurement of sheet thickness/target displacement

6. Ultra high precision, with repeatability of up to 10um/100um, and more different specifications of precision available for selection

7. Simultaneously equipped with a display screen and output signal, analog quantity 4-20mA/analog quantity 0-5V, switch quantity NPN, PNP, etc., convenient for connecting to different control devices

8. Metal protective shell, supporting IP67 level protection, dustproof and waterproof, protecting equipment, can be used in complex industrial sites

9. Small light spot, bright light spot, used for precise aiming and positioning of object targets

10. Widely used: thickness measurement, height measurement, tilt measurement, bending detection, deformation measurement, relaxation measurement, size measurement, limit measurement, counting output, mechanical processing positioning, segment difference discrimination, overlap detection, combination measurement, shape detection, shape measurement, precision instrument, dispensing machine positioning, object deformation monitoring, scientific research and teaching, and other fields

High precision switch analog laser displacement ranging sensor for measuring distance, near distance, thickness, height sensor
