iHawkP150E 3D Structured Light Camera – High-Precision Imaging for Industrial & Consumer Applications

The iHawkP150E is an advanced 3D structured light camera that integrates polarized light technology to significantly reduce noise and depth loss in challenging environments. This state-of-the-art sensor is ideal for 3D imaging applications across industrial control, consumer electronics, automation, and other related fields requiring precise depth mapping and real-time analysis.

Key features of the iHawkP150E include:

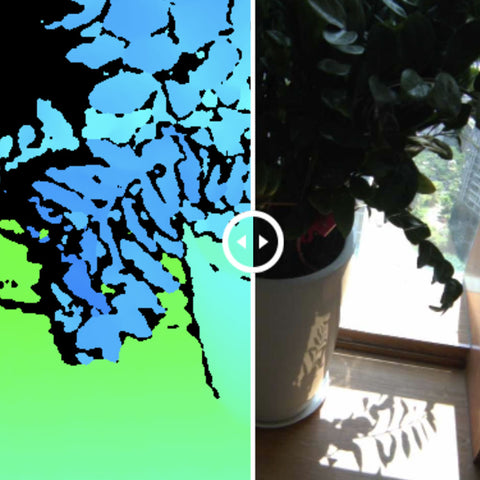

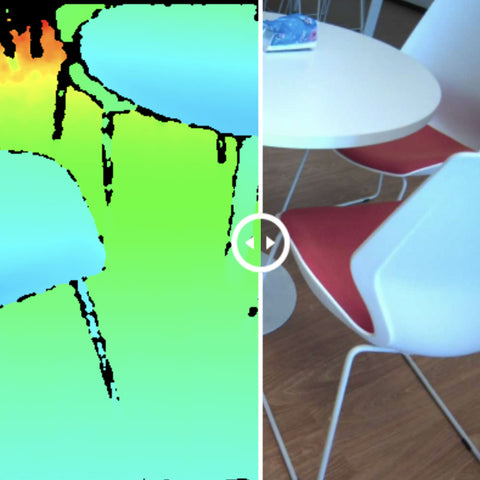

High-Precision Depth Mapping: The camera provides accurate 3D depth information for a wide range of applications, from quality control and robotics to gesture recognition and facial recognition.
Optimized Performance: By eliminating the need for external computational power, the device processes depth information within the module itself, offering fast and reliable real-time processing.
Cross-Platform SDK: The module comes with a self-developed SDK that supports Android, Windows, and Linux, enabling seamless integration into various systems and applications across different industries.
Noise Reduction: Using advanced polarized light technology, the iHawkP150E reduces the impact of environmental noise, providing clear and precise depth measurements even in dynamic or complex scenes.

This versatile and powerful 3D camera system is perfect for AI cameras, robotics, augmented reality (AR), automated inspection systems, and more. With its easy integration and superior image processing capabilities, the iHawkP150E is the ideal solution for enhancing automation and machine vision in a variety of industries.

Product specification

Name	Parameters
Type	iHawkP150E
Baseline	40mm

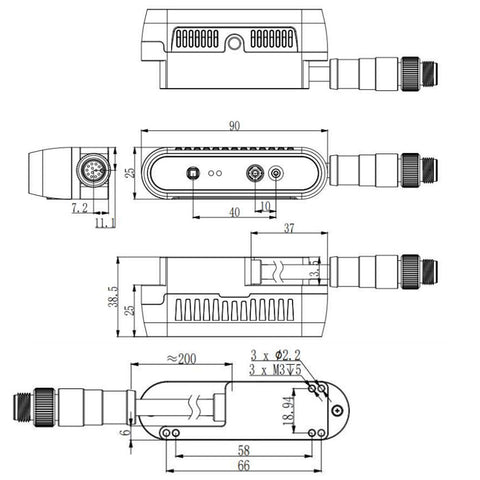

Size	90x25x38.5 mm
Communication interface	Ethernet
Protection grade	IP55
Range	0.3-8.0m
Depth accuracy	±1mm@60cm
Power	2.5W
Hardware interface	M12-12 core
Power supply	DC12V ≥ 2A
Laser wavelength	940nm
Operating temperature	-10°C~50°C
Depth image	Resolution/Frame rate ： 1280x 800 @7fps/640 x 400 @25fps FOV： 72°(±3°) x 50.5°(±3°) Format： Raw16
RGB image	Resolution/Frame rate： 1280x 800 @7fps/640 x 400 @25fps FOV ：72°(±3°) x 50.5°(±3°) Image coding format：MJPEG
Firmware parameters	Support depth&RGB picture output , alignment, support OTA, automatic startup after the upgrade

M12 1-to-2 RJ45 + Open-Wire Cable_A
