The LDS-50C Series LiDAR Sensor is a high-performance 2D scanning LiDAR designed for long-range, reliable environmental perception in demanding industrial and robotic applications. Featuring a self-developed 360-degree scanning mechanism and advanced optical design, the LDS-50C Series provides accurate distance and intensity data while maintaining a compact and lightweight form factor.

Equipped with a 905 nm near-infrared laser, the LDS-50C Series supports detection distances of up to 40 meters (90% reflectivity), making it well-suited for large-area sensing, obstacle detection, and navigation tasks. Two models are available to meet different system requirements: LDS-50C-R with UART communication and LDS-50C-E with Ethernet interface, offering flexibility for various integration scenarios.

The sensor features a step window optical design, significantly improving resistance to dust and contamination, reducing maintenance needs, and ensuring long-term stable operation. With strong ambient light resistance exceeding 80,000 lux, the LDS-50C Series delivers reliable performance in both indoor and outdoor environments.

Powered by a built-in DC brushless motor, the LDS-50C Series supports scan frequencies of 10 Hz and 15 Hz, with high angular resolution down to 0.12° at 10 Hz (Ethernet version). Its robust construction, IP5X/IP54 protection rating, and wide operating voltage range make it suitable for industrial automation, autonomous vehicles, mobile robots, AGVs, and smart logistics systems.

Combining long-range detection, compact design, and cost-effective operation, the LDS-50C Series is an ideal solution for applications requiring reliable 2D LiDAR sensing with minimal maintenance.

Long-range, Compact, Reliable

Long-range detection up to 40 meters.
Compact and lightweight design with high performance.

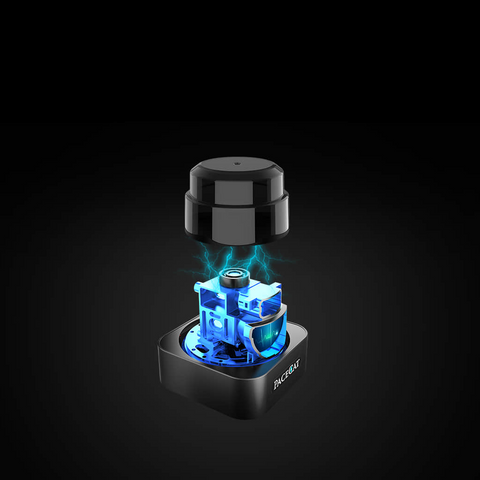

Self-developed 360-degree scanning for reliable operation.
Step window design for excellent dirt resistance.
Cost-effective solution with reduced maintenance needs.

Specs

Model	LDS-50C-R	LDS-50C-E
Laser Wave Length	905nm±15nm	905nm±15nm
Distance	0.1-40m（90%） 0.1-15m（10%）	0.1-40m（90%） 0.1-15m（10%）
Measure Frequency	18kHz	30kHz
Scan Frequency	10HZ 15HZ	10HZ 15HZ
Echo Mode	Single Pulse	Single Pulse
Echo intensity	0-254	0-254
Drive	Built-in dc brushless motor	Built-in dc brushless motor
Measure Angle	360°	360°
Angle Resolution	0.2°@10HZ 0.3°@15HZ	0.12°@10HZ 0.18°@15HZ
Ranging Accuracy	±25mm	±25mm
Range Resolution	mm	mm
Communication Interface	UART 3.3V	Ethernet
Optical Interference Resistance	>80000LX	>80000LX
Weight	<108g	<108g
Supply Voltage	4.8VDC~5.5VDC	9VDC~28VDC
Working Temperture	-10℃～ +50℃	-10℃～ +50℃
Power Dissipation	≤ 2W	≤ 2.5W
Protective Class	IP5X/IP54	IP5X/IP54
Size（mm）	55.555.551.7mm	55.555.551.7mm
