Nanoradar 60Ghz Radar MR62 for Intelligent Transportation

MR62 multi-lane speed measurement radar is a millimeter wave radar sensor based on 60GHz ISM frequency band and developed by FM continuous wave system, multi-antenna transceiver technology and traffic speed measurement algorithm, which is suitable for traffic law enforcement linkage photographing and forensics cameras

Traffic flow monitoring
Multi lanes speed measurement
Retrograde Violation Snapshot

Radar Specification:

Cases on installation

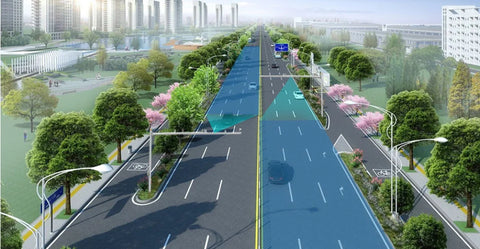

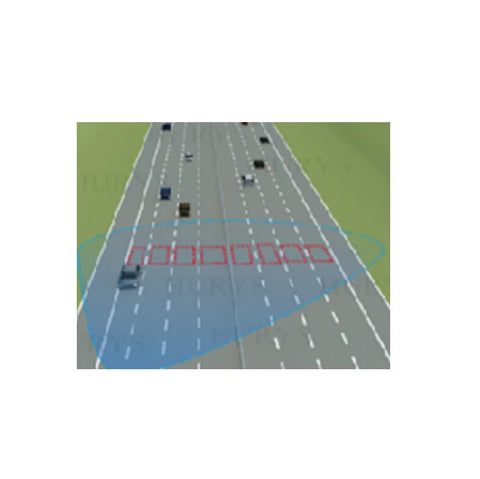

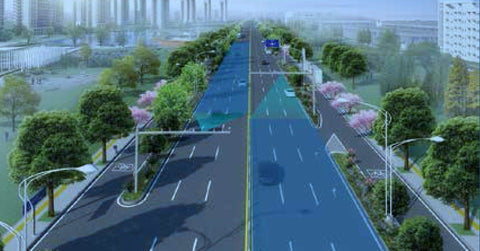

1 Multi-lanes speed measurement

Tmr62 60GHz millimeter wave radar can simultaneously detect the distance, speed and angle information of 4 lanes and 32 target vehicles, and the maximum detection distance of radar can reach 90 meters. Based on the advantages of millimeter wave radar, MR62 is not affected by light and dust, and can realize all-day and all-weather real-time monitoring of road sections. MR62 effectively solves the problem of large vehicle target splitting, does not produce false alarm and false alarm when the target is running at low speed, and performs good algorithm filtering on false alarm caused by strong wind in the green belt of highway. The main application scenarios are:

1. Statistics of traffic flow, speed and other information of current sections on trunk roads and expressways

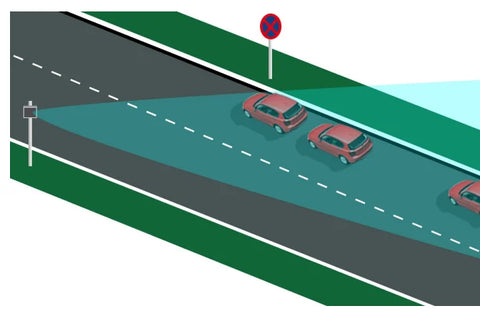

Roadside Violation Monitoring

MR62 can identify vehicle types, low-speed targets and motion states, and track moving to stationary targets for a period of time. By fusing radar and capture camera, the vehicle position, illegal stop and departure time can be accurately located, and radar linkage camera can capture license plate to realize roadside illegal stop monitoring. There are few police forces and many vehicles in cities, and roadside violations have seriously affected the normal operation of urban traffic. How to use the existing police forces to ensure the smooth flow of urban roads is the pain point of urban traffic management. Through the combination of MR62 and snapshot camera, control can be arranged in various key traffic control areas to judge the driving track and parking time, which can effectively distinguish temporary parking from long-term illegal parking, capture illegal parking vehicles, control managed road sections under unattended conditions, effectively reduce illegal parking and ensure unimpeded urban roads.

Advantages of MR62 60GHz Millimeter Wave Radar:

1. Accurate ranging;

2. Small volume and low power consumption;

3. Strong anti-interference ability

Conclusion

MR62 60GHz millimeter wave radar is currently the most cost-effective product in the field of traffic speed measurement and monitoring in China, which has the characteristics of high precision, low power consumption, high stability, etc. The radar can simultaneously detect the distance, speed and angle information of 4 lanes and 32 target vehicles, and the maximum detection distance of the radar can reach 90 meters. The performance of this product has been verified by many manufacturers and can quickly replace foreign traffic speed monitoring radars

The 60 ghz fmcw fmcw radar sensors use advanced fmcw operations with high bandwidth and ghz bandwidth to enable high resolution motion detection, vital signs monitoring, and human presence detection. With sige bicmos technology, antennas in package aip, and a small form factor, these mmwave radar sensors support various sensing applications including smart home devices, door locks, and air conditioners, featuring a wide field of view fov powered by infineon xensiv technology.

Nanoradar 60Ghz MR62 Millimeter Wave Traffic Radar sensor for Traffic speed monitoring, gate speed control
