SLAM Navigation Explained How ToF Sensors Improve Robot Accuracy

How Does SLAM Navigation Work and Why Do Robots Need ToF Sensors

SLAM navigation, short for Simultaneous Localization and Mapping, is a foundational technology behind modern autonomous robots. It enables robots to understand where they are while simultaneously creating a map of their surroundings, without relying on GPS or pre installed infrastructure. As industrial automation accelerates, SLAM navigation has become essential for mobile robots operating in factories warehouses and complex indoor environments.

The Evolution of SLAM Navigation Technology

SLAM technology was first introduced in the late 1980s and was initially developed for military and defense applications. Early SLAM systems focused on enabling autonomous robots and unmanned vehicles to navigate unknown environments such as battlefields underground tunnels and reconnaissance zones where GPS signals were unavailable or unreliable.

With advances in computing power sensor technology and algorithm design, SLAM navigation gradually transitioned from research labs and defense systems into commercial and industrial use. Today SLAM is widely applied in areas such as autonomous mobile robots AMRs automated guided vehicles AGVs autonomous driving systems robotic vacuum cleaners and augmented reality platforms.

Modern SLAM systems significantly enhance robot intelligence navigation accuracy and operational efficiency. Industries including logistics manufacturing automotive warehousing and smart factories now rely heavily on SLAM based navigation systems to achieve flexible and scalable automation.

What Is SLAM Navigation

SLAM navigation refers to a robot’s ability to perform real time localization while building a map of an unknown or changing environment. Unlike traditional navigation methods that depend on magnetic tapes QR codes or fixed landmarks SLAM allows robots to navigate freely without additional infrastructure.

SLAM systems typically fuse data from multiple sensors including cameras LiDAR IMUs and ToF depth sensors. By processing this data with advanced algorithms robots can estimate their position build accurate maps and update both continuously as the environment changes.

This approach solves a fundamental challenge in robotics localization. A robot needs a map to know where it is but also needs to know its position to build the map. SLAM resolves this dependency making autonomous navigation possible in indoor environments underground facilities and dynamic industrial settings.

Relationship Between SLAM and ToF Sensors

SLAM and ToF sensors play complementary roles in autonomous navigation systems. SLAM defines the navigation framework and mapping logic while TOF (Time-of-Flight) technology provides precise depth perception data that strengthens SLAM performance.

ToF sensors measure distance by emitting modulated light pulses and calculating the time it takes for the reflected signal to return. This enables real time depth measurement and accurate three dimensional reconstruction of the surrounding environment.

When integrated into SLAM navigation systems ToF depth cameras offer several critical advantages. They provide dense and accurate depth maps which significantly improve map quality and scale consistency. Compared with monocular cameras ToF sensors reduce scale ambiguity in SLAM algorithms. In low light low texture or reflective industrial environments ToF based depth sensing improves feature extraction robustness and tracking stability.

When fused with RGB cameras LiDAR and IMUs ToF sensors enable more stable reliable and resilient SLAM navigation especially for indoor positioning and industrial robot navigation.

Core Architecture of SLAM Systems

A typical SLAM navigation system consists of two main components the front end and the back end.

The SLAM front end focuses on perception and estimation. It processes raw sensor data performs feature extraction and matching estimates motion through odometry and associates sensor observations. Data from cameras LiDAR IMUs and ToF sensors are fused at this stage to generate an initial estimate of robot pose and local map structure.

The SLAM back end focuses on global optimization and mapping. It refines pose estimates reduces accumulated drift optimizes pose graphs and improves long term map consistency. Together these two modules ensure real time responsiveness and long term localization stability which are essential for industrial grade SLAM navigation.

Types of SLAM Based on Sensors

Visual SLAM uses monocular stereo or RGB D cameras to extract visual features from images. It is commonly used in indoor robots AR VR systems and consumer robotics. Visual SLAM offers low hardware cost and rich environmental information but can be sensitive to lighting variations and texture poor scenes.

LiDAR SLAM relies on laser scanners to capture precise three dimensional structural data. It provides high accuracy strong robustness to lighting conditions and reliable performance in large scale environments.

ToF based SLAM combines visual information with Time of Flight depth sensing to enhance depth accuracy and spatial understanding. ToF SLAM systems perform particularly well in indoor industrial environments where lighting conditions vary and visual features may be limited.

IMU based SLAM uses inertial measurements to estimate motion and orientation and is often combined with visual LiDAR and ToF sensors to improve robustness during rapid movement vibration or temporary sensor occlusion.

Why SLAM Navigation Is Essential for Industrial Robots

One of the primary advantages of SLAM navigation is autonomous operation in GPS denied environments. Factories warehouses underground facilities and indoor logistics centers require reliable indoor positioning systems where GPS is unavailable.

By leveraging ToF depth sensing SLAM systems enhance environmental perception enabling robots to detect obstacles recognize layout changes and avoid collisions in real time even in low light or dusty industrial settings.

Accurate SLAM maps generated with the support of ToF sensors enable intelligent path planning improving efficiency reducing downtime and increasing task execution speed.

Modern SLAM navigation systems offer strong adaptability. They can handle variable lighting human robot interaction layout modifications narrow aisles and complex structures while maintaining localization accuracy.

From a deployment perspective SLAM navigation supported by ToF technology reduces reliance on external infrastructure lowering installation cost and accelerating system rollout.

SLAM Navigation in GPS Denied Indoor Environments

Indoor positioning based on SLAM is essential in environments where GPS signals cannot be used. Visual SLAM relies on feature tracking while LiDAR SLAM uses laser reflections.

By integrating ToF depth cameras SLAM systems gain more reliable depth perception and spatial awareness enabling stable localization in large complex and multi level indoor environments.

Key Applications of SLAM Navigation

In autonomous driving SLAM supports vehicle localization and mapping by fusing camera LiDAR IMU and ToF sensor data.

In industrial mobile robot navigation SLAM allows AMRs and AGVs to autonomously perform material handling inspection and logistics tasks without fixed infrastructure.

In consumer robotics ToF enabled SLAM improves robotic vacuum navigation enabling accurate room mapping obstacle detection and efficient cleaning paths.

Top View SLAM Navigation A New Approach

Top view SLAM navigation introduces a new paradigm by using overhead features for localization and mapping. By integrating 3D ToF cameras with advanced vision algorithms robots can localize using ceiling structures avoiding interference from floor level obstacles.

This approach excels in warehouses with high ceilings narrow aisles and frequent layout changes delivering higher stability and long term accuracy compared with traditional methods.

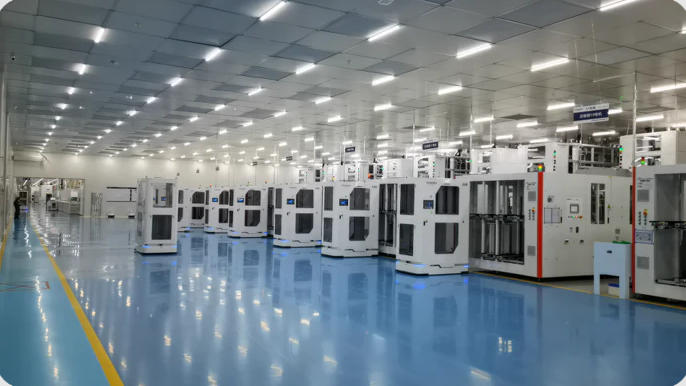

Industrial Use Cases of SLAM Navigation

In large scale smart logistics facilities hundreds of AGVs equipped with ToF enhanced SLAM navigation operate continuously despite heavy traffic and dynamic layouts.

In automotive manufacturing ToF based SLAM systems enable AMRs to transport components safely in mixed human vehicle environments.

In dense warehouses ToF supported SLAM navigation allows AGV forklifts to operate reliably in narrow aisles and high density storage zones.

Conclusion The Future of SLAM Navigation

SLAM navigation has become the backbone of modern autonomous systems enabling accurate localization intelligent mapping and efficient navigation in complex environments.

With the integration of ToF sensing technology next generation SLAM systems are achieving higher precision robustness and adaptability.

As industrial automation continues to evolve SLAM combined with ToF depth sensing will play a critical role in shaping smarter safer and more efficient autonomous robots.
